8 Tools & Materials

8.1 Core Equipment & Products

Successful implementation of digital satellite television distribution systems requires careful selection of core equipment and supporting materials. This chapter provides an overview of essential products, their specifications, and selection criteria to ensure optimal system performance and reliability.

8.2 Satellite Dish Antennas & LNB Units

Satellite dish antennas are the primary reception devices that capture satellite signals. Professional installations typically employ parabolic reflector antennas ranging from 1.2m to 3.7m in diameter, depending on satellite footprint, signal strength, and local conditions. The Low Noise Block (LNB) downconverter, mounted at the antenna focal point, amplifies and downconverts the received signal to L-band frequency for distribution to receivers.

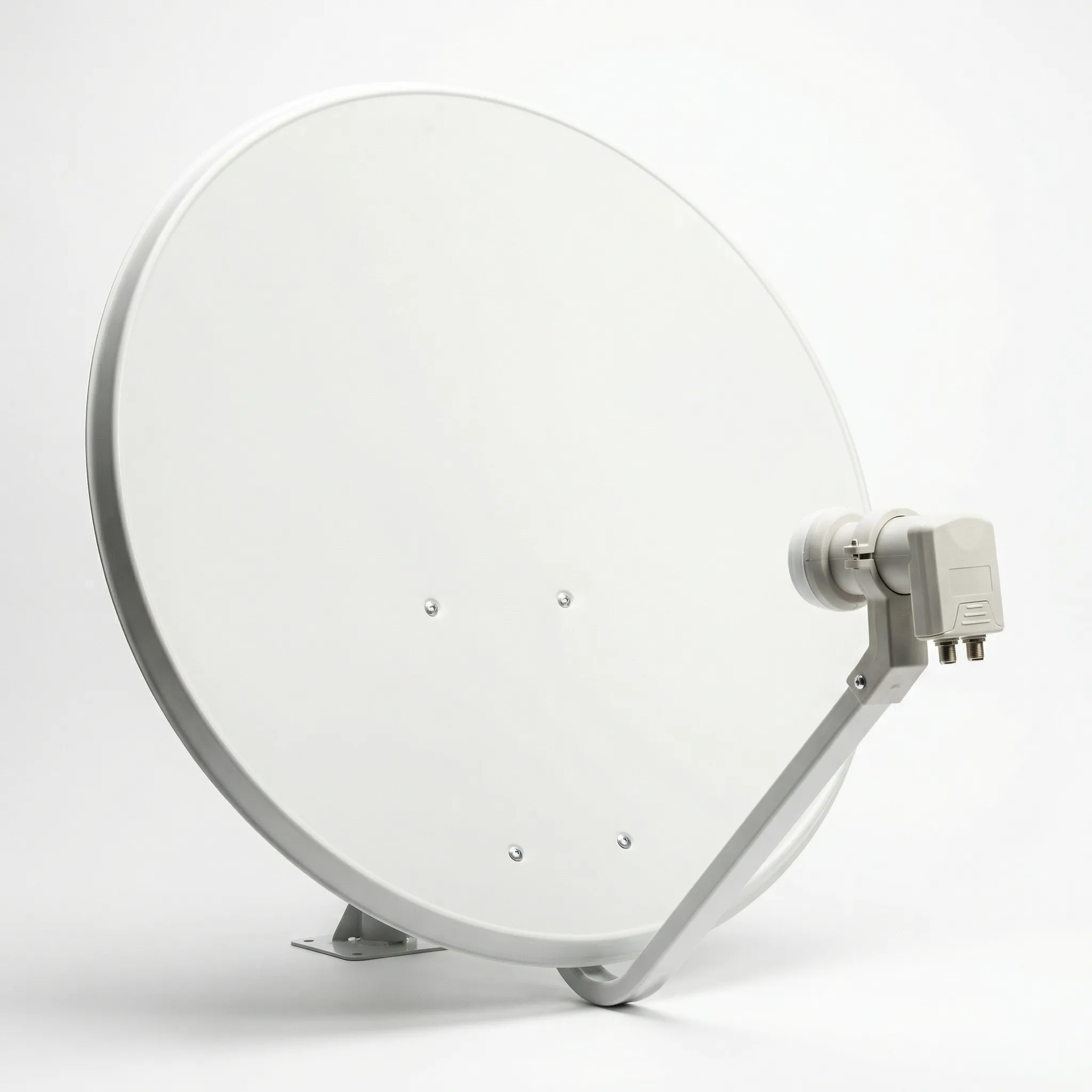

Figure 8.1: Professional Satellite Dish Antenna with LNB Unit

Key Specifications: Antenna diameter (1.2m-3.7m), gain (35-45 dBi), frequency range (10.7-12.75 GHz), LNB noise figure (0.1-0.7 dB), LNB output configuration (single, dual, quad, octo), polarization support (linear H/V or circular LHCP/RHCP).

8.3 Integrated Receiver Decoders (IRD)

The IRD is the core processing unit that receives satellite RF signals, demodulates digital transport streams, decrypts encrypted content, and outputs video/audio in various formats. Professional IRDs are rack-mountable units supporting multiple output interfaces and remote management capabilities.

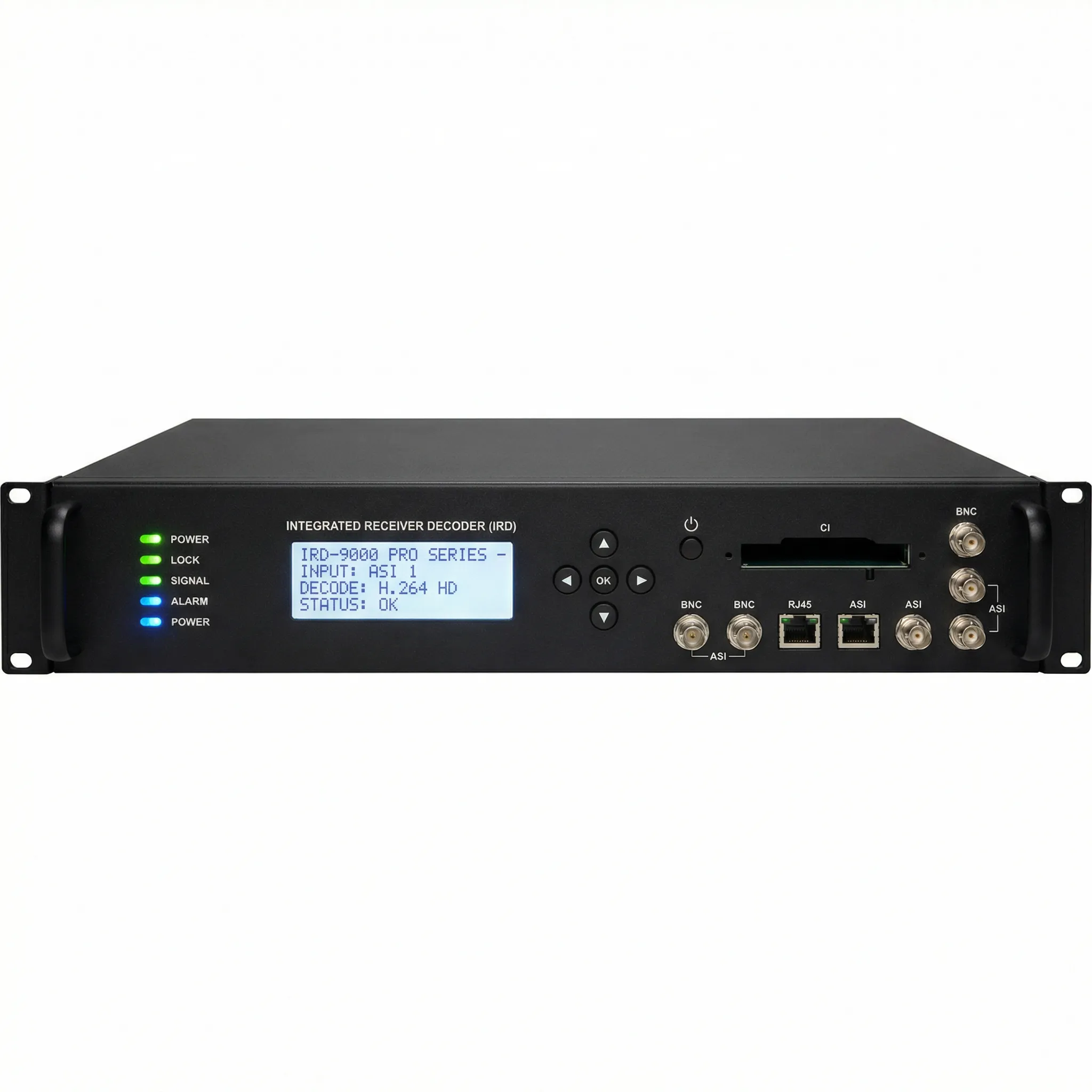

Figure 8.2: Professional Integrated Receiver Decoder (IRD) Unit

Key Specifications: Input frequency (950-2150 MHz), supported standards (DVB-S, DVB-S2, DVB-S2X), symbol rate range (1-45 Msps), descrambling support (DVB-CI, embedded CAM), output interfaces (ASI, IP, HDMI, SDI), video resolution (SD, HD, 4K), audio formats (MPEG, AAC, AC-3), remote management (SNMP, web interface, API).

8.4 RF Distribution Matrix

RF distribution matrices provide flexible routing of satellite signals from multiple LNB outputs to multiple IRD inputs. Professional matrices offer programmable switching, signal amplification, and monitoring capabilities to ensure optimal signal distribution and system flexibility.

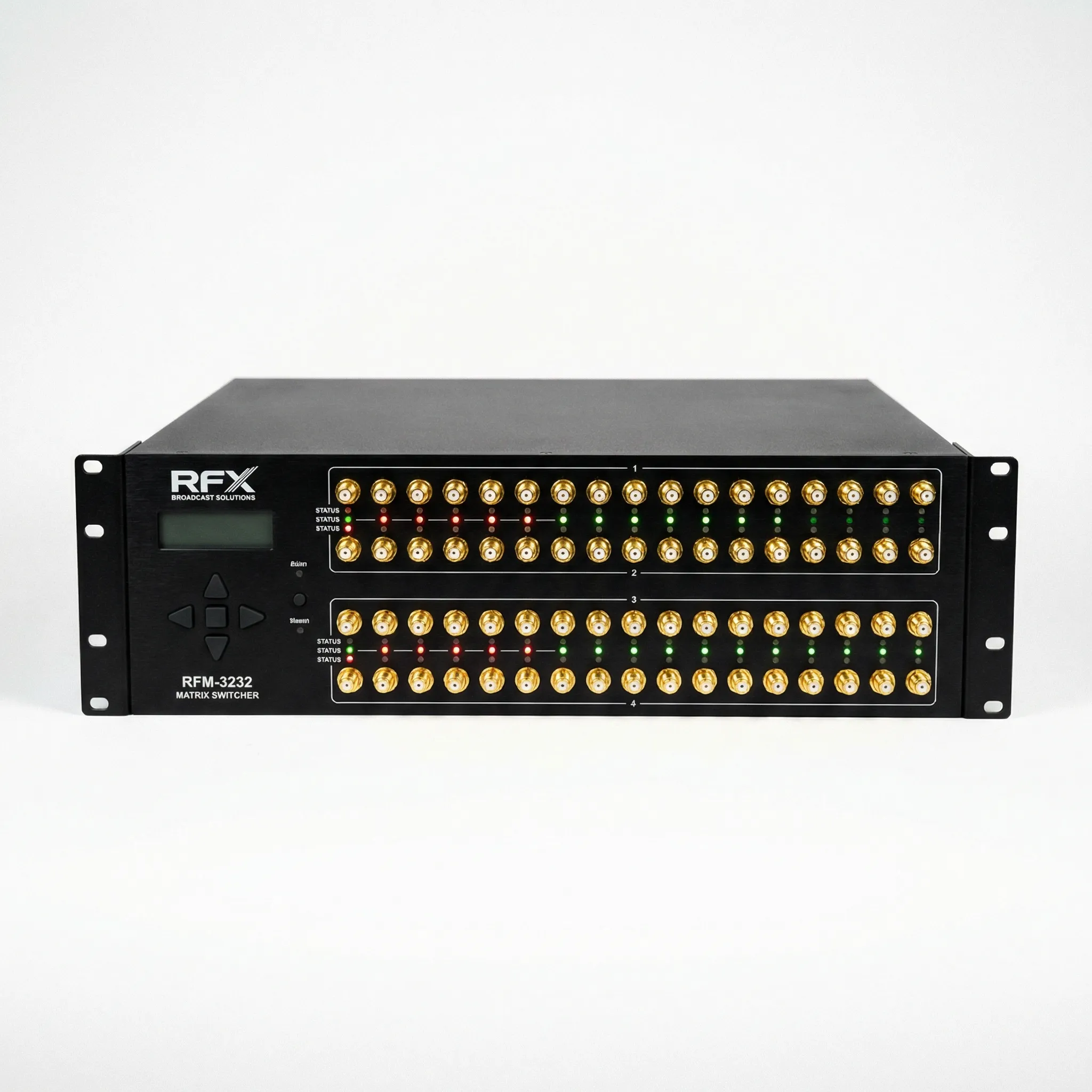

Figure 8.3: Professional RF Distribution Matrix Switcher

Key Specifications: Input/output configuration (8x8, 16x16, 32x32, etc.), frequency range (950-2150 MHz), insertion loss (<3 dB), isolation (>30 dB), switching speed (<100ms), control interface (RS-232, RS-485, Ethernet, SNMP).

8.5 Supporting Materials & Accessories

Professional installations require high-quality supporting materials including coaxial cables (RG-6 or RG-11 for satellite RF, 75-ohm impedance), F-connectors (compression type recommended), cable management accessories (cable trays, ties, labels), grounding materials (grounding blocks, bonding wire, grounding rods), and mounting hardware (antenna mounts, rack rails, equipment shelves). Quality materials ensure long-term reliability and optimal signal integrity.

8.6 Installation Tools

Essential installation tools include satellite signal meters for antenna alignment, cable stripping and crimping tools for connector installation, torque wrenches for proper connector tightening, multimeters for electrical testing, cable testers for continuity and impedance verification, and spectrum analyzers for advanced signal analysis. Professional-grade tools ensure accurate installation and optimal system performance.
